RS232 IR Blaster

Our very first product is still a great solution 10 years later. The RS232 IR Blaster is designed to work with LIRC and works great with numerous PVR projects including MythTV and Freevo

Features:

› Female DB9 Connector
› 7 Foot Cord

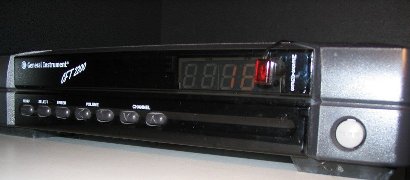

› Sticks directly to your cable or satellite box
› Ultra compact IR Emitter
› Protocol Independent (36 KHz, 56 KHz, etc)
› IR Transparent (your regular remote will still work)

Installation Guides:

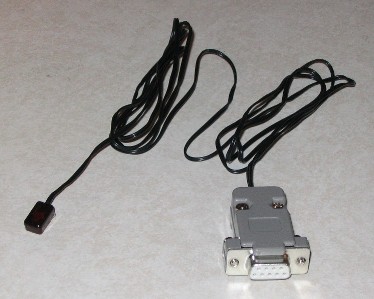

Standard MythTV LIRC RS232 IR Blaster (Pictured)	$12
Light Up MythTV LIRC RS232 IR Blaster Just like the standard, but with a clear IR Head That lights up red on TX	$16
Double Headed MythTV LIRC RS232 IR Blaster Two Standard IR Heads connected to one DB9	$23
Click here to control more than 2 devices

Payment is processed through either paypal or google checkout

US First class mail with delivery confirmation starts at just $3.95/order.
International air mail shipping (no tracking or insurance) starts at $4.90
Please see the FAQ for additional shipping options.

NEW: True RS232 IR Blaster without running LIRC

Information for SnapStream BeyondTV Users

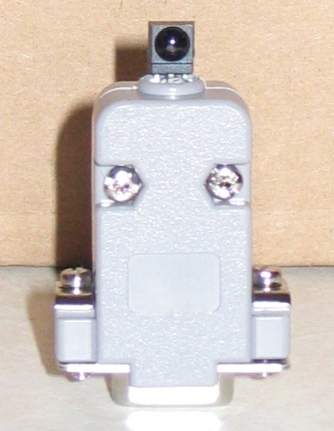

RS232 IR Receiver

IR Receiver built into a DB9 Backshell.

Designed to work with LIRC and winlirc and works great with numerous PVR projects including MythTV, Freevo, GBPVR, and SnapStream

Also available with a 6 foot cable
Between the DB9 and Receive Head

rs232 cabled ir receiver

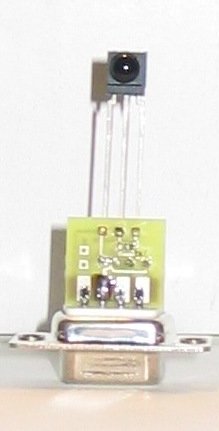

Internal View:

Designed with PCB and SMT components
Not some mess of wires

Standard MythTV LIRC RS232 IR Receiver	$12.75

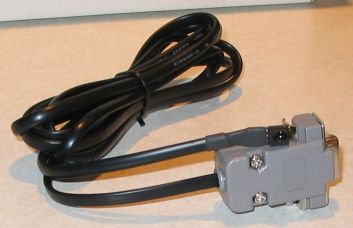

Cabled RS232 IR Receiver. 6' Cable between DB9 and Receive head	$18.95

US First class mail with delivery confirmation is $3.95/order.
International air mail shipping (no tracking or insurance) is approximately $4.95 and is calculated during checkout.
Please see the FAQ for additional shipping options.

FTDI USB IR Blaster

We have a limited number of FTDI (FT232RL) based USB IR Blaster Cables now available. LIRC under linux now has support for these cables. You must compile from source to use these cables. WinLIRC is not supported. For WinLIRC or module based install please see our Serial RS232 IR Blasters.

Please see this blog post for more information on FTDI based USB products.

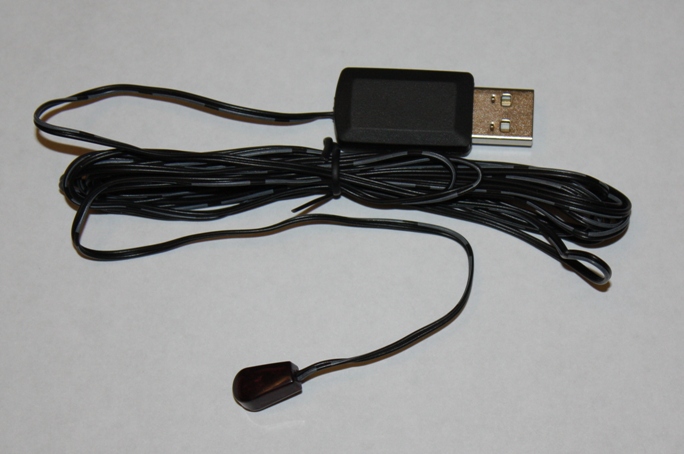

usb ftdi ir blaster

FTDI Based USB IR Blaster

$23.95

This is a transmitter cable. If you are looking to hide a set top box behind closed doors powered from a set top box USB port please see our IR Repeater products.
