Mini RS232 Level Translator

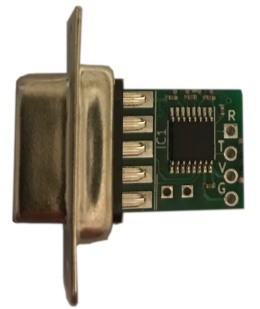

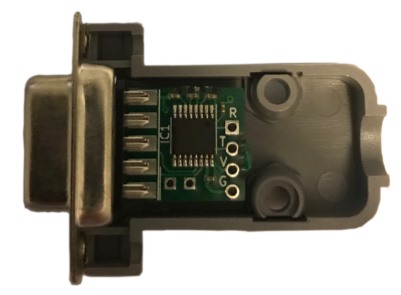

Our mini RS232 Level translator fits within a DB9 Clamshell. The Plastic DB9 Clamshell is included with the board so you can easily wire the level translator to your project.
Specifications
- Female DB9 Connector
- Plastic DB9 Clamshell included
- MaxLinear SP3232EEY Level translator IC
- Powered by 3.0 to 5.5V
- True RS232 I/O
- V Pad = Power input
- G Pad = Ground
- T Pad = TTL Output
- R Pad = TTL Input
- Pads also available for CTS TTL in and RTS TTL Out
- Schematic
Solid in Two Pack: Two Level translator Boards + Two DB9 Clamshells
| Mini RS232 Level Translator: 2 Pack | $14 |
|
